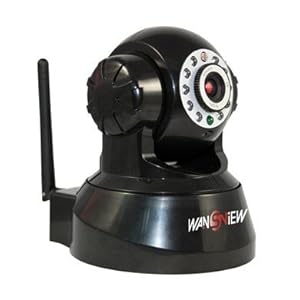

Wireless IP Pan/Tilt/ Night Vision Internet Surveillance Camera Built-in Microphone With Phone remote monitoring support(Black)

Product Details

• Item Weight: 1.1 pounds


• Shipping Weight: 1.2 pounds (View shipping rates and policies)


• ASIN: B003LNZ1L6


By : Wansview
Price : $49.50

Item Description

Specs: Image Compression Format: M-JPEG normal Image Resolution: VGA(640x480) / QVGA(320x240) Sensor: 1/four inch CMOS, 300,000 Pixels Light frequency: 50Hz, 60Hz or Outdoor Audio compression: ADPCM Information rate: 802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.) Ethernet: A single ten/100Mbps RJ-45 Viewing angle: 67? Horizontal Rotating Angle: ~270? Vertical Rotating Angle: ~120? Alarm Mode: motion detection alarm and I/O alarm Video Display: Microsoft Media Player Image Transfer Velocity: 30fps VGA Image Display: single / quad Minimum Illumination: 0LUX Video Format: AVI Network Interface: Wi-Fi/RJ-45 10-100 Base T Network Protocol: TCP/IP, FTP,SMPT, HTTP, ICMP, PPPoE Monitor Mode: Firefox Computer software Upgrade: Automatic upgrade Security: User management program, password protection Password Setting: administer, monitor, scrutiny Operating Situation: -10?C~ 50?C , 20% - 80%PH Energy Adapter: DC5V/2A 50/60Hz Operating Process: Windows 2000/Windows XP/Windows 7 and Apple MAC ? Package contains: 1 x IP Camera 1 x Antenna 1 x Base 1 x Power Adapter 1 x Network Cable 1 x CD Driver Screws Review Functions under each Apple MAC and Safari. Nonetheless, browser ought to be run under Firefox. To select your browser, please enter into the IP camera residence page and choose Firefox



Wireless IP Pan/Tilt/ Night Vision Internet Surveillance Camera Built-in Microphone With Phone remote monitoring support(Black)



Technical Details

• Simple installation: the installation of network cameras is very simple, only power and networks connection are needed.


• Scope of applications: apply to home, offices, enterprises, supermarkets, schools and other public places.


• Supporting multiple protocols: Embedded operation system supports the TCP / IP, SMTP (simple mail protocol), HTTP, UPNP, etc.


• Alarm Monitoring: Through external alarm device, the alarm information can be sent to your e-box or your mobile phone.


• If WIFI wireless connection is used, only power is a must.

Consumer Evaluations

The camera I got was branded EasyN, but the box art shown on the product info page matches the box I got. Some persons claim they have Foscam, Apexis, Hootoo, etc. brand, but I feel it's the similar camera branded in completely different brands to accommodate distinct markets. I admit, it would Assist if you are tech savvy or at least have some knowledge in network configuration to expedite the set up and get the camera running, but that's not necessary. This camera is not specifically the most fool-proof camera in the industry, but its feature make up for it.
The directions are readable, albeit choppy due to the poor Chinese-to-English translation. OK here's the deal. I'm going to write a lengthy semi-critique, semi-how-to for this great IP camera seeing the will need for an instruction for Mac customers. 1st of all, I am a Mac user operating on OS X ten.7.2 Lion and I got this negative boy up and operating inside an hour. For all you Mac customers out there, you'll want to have temporary access to a Windows machine.
If you do not have a Windows machine, see UPDATE 4 at the finish of this evaluation - then comply with steps 3 and forward. I am writing this evaluation beneath the presumption that the typical user has no knowledge of MAC access manage list or WiFi DHCP client table from your router to set-up the camera it by way of WiFi. You want it to run the application that permits you to detect and configure the camera's IP. Regrettably, this application is written for Windows only. But that is all you have to have a Windows machine for. As soon as you configure the camera's IP address to work with your LAN, then you can use the web interface and configure a whole sleuth of other possibilities, including the alarm function, FTP, Mail and other. So with no adieu, let's do this!
I've taken screenshots to aid accommodate the mini guide beneath. So examine out the user-submitted images for 7+ images I've added for directions on how to proceed. The instruction is for connecting the camera to a LAN - I chose this route since my WiFi network is secured over a few layers of security (Sonic Wall fire wall, MAC manage, and so on.) and it's just simpler to get the cam up and running by way of the LAN.
.) Connect your IP camera to your LAN by way of ethernet and plug in the energy supply.
1.) Get access to a Windows machine. I dual-booted to Windows Vista via Boot Camp. Make certain this Windows machine has access to your LAN.
two.) Run the application with the file name, DevFind.exe - you can find it in the directory, /EasyN F2 series IP camera installation CD/software program. My included install disc was a blank CD-R disc! so I had to download the CD content material ZIP from the manufacturer's internet webpage: "easyntech . com / ShowDownload . asp ? id = 34" you can download the manuals in PDF format from the site as well).
three.) Run the DevFind.exe to locate your camera, then modify the camera's IP address so that it matches your LAN's IP range structure, subnet mask and gateway. The default IP address assigned to the camera really should be indicated in a silver sticker positioned underneath the camera. The similar sticker can also be identified on the exterior of the box. Basically, the default IP should really be some thing along the line of 192 . 168 . 1 . 126 and access port 81 (it could be different). Since my LAN's IP range structure is 192.168..x, I have assigned the camera an IP address of 192 . 168 . . 155. I changed out the default port of 81 to 310. Understand me so far? The moment you got that down, click on the "APPLY" button to make the adjustments.
four.) Click on the "Other people" tab below the Equipment Knowledge field. Take note of the facts positioned in the "MAC" field, it ought to be a 12 letter/number string of characters.
five.) If you have access controlled enabled in your router, then adhere to this step. If not, you can skip. What access manage means is you only enable certain network devices permission to connect to your LAN. Even if the connecting client knows your WEP/WPA/WPA2 password, they still will not be able to connect to your Wi-Fi unless their device is registered to the access control list. The distinctive identifier of the network device is its MAC address. If you have this enabled, then add the camera's MAC address you have just jotted down in the previous step to your router's access manage list. The convention must be XX:XX:XX:XX:XX:XX exactly where X is a number or a character from the alphabet. So if your camera's MAC address is 00A8F700F341, enter it as 00:A8:F7:00:F3:41 Update and restart your router right after entering. If you have the suggests to reserve IP address designation on your router, I would do so. Considering the fact that I assigned the camera an IP address of 192 . 168 . . 155, I would reserve this address on the router to the camera's MAC address so that this IP does not get reassigned by the DHCP to a further network device by accident.
6.) You will definitely will need to port-forward your camera if you program to remote view from outside. In your router setup, go to the "Port Forwarding" page - it's frequently below "Advanced setup" or anything similar. Considering that I assigned the camera a custom port of 310, I would enter the port range beginning and ending at 310 to be forwarded to the camera's IP address of 192 . 168 . . 155 .
7.) Subsequent, you will need to be in a position to punch in the IP address and port number you've assigned to the camera as noted on step three onto your internet browser and launch the internet-based utility app e.g. http:// 192 . 168 . . 155:310. When you first attempt to access the camera by way of a net browser, it will ask you for a username and a password. This info is situated underneath the camera and also on the box. It's generally "admin" for the username and a blank password, but double examine your equipment.
8.) Choose the viewing process if you are employing IE pick the 1st link, if you're applying Firefox, choose the second link, and so on.
9.) View your camera, control it, etc
ten.) Click on the Options icon to access the net-based configuration app, or punch in http:// 192 . 168 . . 155:310 /admin2.htm to access it straight
11.) Configure all sorts of other goodies, such as FTP access, E-mail, alarm, DDNS, Alias, and so on.
12.) If you want to view your camera from remote (i.e. outside of your household network), assuming you have a static IP, then you will need to punch in your ISP assigned IP address, followed by your port. You can get out your ISP assigned address by going into your router and hunting at the details located in the "simple setting" area. Thanks to daniel for pointing this out. If you have a dynamic IP address, then I advise signing up for a dynamic DNS server, such as dyndns.org. Be certain to update the DDNS region of the web utility with the suitable login credential to your dynamic DNS provider.
I am working on the wireless LAN setup, so I will edit this critique once I have a sure fire way to set it up so I can append a straightforward how-to to help people get started out. Any question, just comment. Again, this is from a Mac OS X Lion ten.7.2 user (at the time of this writing).
Considering that I am a Mac user, the IP Camera utility is USELESS (unless you're employing Parallel or Fusion to run Windows). I rely solely on the web-based interface to view the camera. It works like a charm so far. The camera's pan and tilt feature is SUPER quickly. Of course, that's simply because I set it at the fastest level you can set it according to your taste. You can set up the Alarm function so that its motion detector can choose up motion contingent on how sensitive you set the camera to behave. When the alarm mode is triggered, you can additional instruct the camera to upload screenshots at set intervals to an FTP server and/or e-mail you the screenshots to an e mail address (see photographs). You undoubtedly don't will need to be Cisco or A+ certified to get this camera to function.
EDIT: As for scheduling the motion-detector, it functions if you set it appropriately. From the web-configuration utility, click on "Alarm Service Setting." Set the sensitivity level, and so on., then examine if you want to have the camera email you and/or take screenshots of events triggering the alarm and upload to a designated FTP server. I checked each. For the scheduler, examine "Scheduler" to bring up a week calendar with hour. Click on the hours you'd like the camera to trigger its motion-detector, then press "Set". Note that the alarm mode will not go into impact right after about 30 seconds right after rebooting. I did not know this at first and believed this feature was defunct from factory. I'm guessing the camera is giving you time to evacuate the premise before arming itself. The scheduling calendar is extremely cumbersome, so it is possibly a lot easier to just turn on or turn off the motion detector.
Also due to the fact you require World-wide-web Explorer to use the ActiveX enabled internet interface, Mac users will luck out. The IE version of the internet interface allows you to record video (AVI format), take a snapshot, listen and speak by means of your camera, along with the ability to command numerous cameras. It also appears that the remote on/off switch performs with the ActiveX IE control interface, but doens't for the other interfaces. I haven't had time to totally test them.
UPDATE 2: I live in an apartment complex exactly where I gave permission to the leasing staff to deliver packages into my apartment when I am not property to sign for it. I set up the camera for motion detection and it picked up the delivery, snap a couple of shots and emailed to me in addition to continuously snapping shots in 5 seconds interval and uploading it to the FTP server. Simply great for $5x.00.
I am so impressed with this camera I will be acquiring two a great deal more units, possibly in white so they can blend with the white walls.
UPDATE three: For WiFi, make certain your router is 802.11 a/b/g compatible and set at two.4ghz frequency. The IP camera will not pick up your router if it's set at five ghz at N-mode only... Read more›

Beware of this cam unless your have excellent network and webcam setup knowledge. The directions are so poorly translated into English that it is laughable. The setup computer software will stump you rapidly unless you know your way about network config, IP cams and the particulars of your current residence network. The included "Super Client" software appears to be a trial product that you ought to buy if you want to use it longer than one particular hour per day. I do not recall any mention of that in the Amazon product descriptions. At least I can not discover any included reg code and every single time your run the computer software you are prompted to download a new version...the identical version you just downloaded.
The cam displays very good high quality video. Pan and tilt function fine. Ftp selections are actually non-existent. For instance, I want to ftp throughout daylight hours only. There is no way to schedule ftp...it is either on or off. Period.
